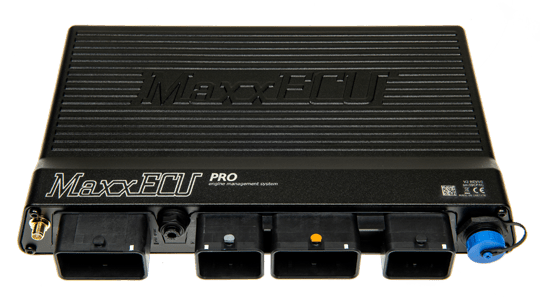

Description Compare MaxxECU’s Target Engines of MaxxECU PRO All 1-12 cylinder engines (4-stroke) Up to 12 cylinders fully sequentially Up to 12 cylinders in wasted spark Selected features Launch control Knock control Boost control (triple stage) Nitrous (stages) Traction control Shift-cut VANOS / VVTi, variable valve timing CAN bus (dual) Auto transmission support Advanced dragracing functions Flex fuel 2 knock sensor inputs 12 EGT inputs (separate harness) 16 injector outputs (high/low impedance) 12 ignition outputs 22 extra analog inputs 10 extra digital inputs 30 extra outputs (GPO) Wideband lambda (dual) E-Throttle (dual) Waterproofed aluminium case Bluetooth Accelerometer MaxxECU PRO inputs Intake air temperature sensor (IAT) Coolant temperature sensor (CLT) Throttle position sensor (TPS) Dual lambda (WBO) sensor. Uses sensor directly connected to the ECU without any additional electronics. Supports Bosch LSU 4.2 and 4.9 2 trigger inputs. VR or digital. Automatic trigger level detection. The signals are processed by a completely separated processor for maximum performance and immunity against interference 6 temperature sensors. Can be used for logging or control of additional functions 16 0-5V inputs. Can be used for additional sensors such as measurement of fuel / oil pressure 10 digital inputs used for example speed sensors (4 can use VR-sensors) or switches Built-in 400kPa MAP-sensor for up to 3bar/43PSI of boost 12 EGT TYPE-K/N inputs with separate harness (up tp 1200C/2200F MaxxECU PRO outputs 16 peak/hold injector outputs. 1-2 high or low impedance injectors per output. 8A per output 12 ignition outputs. 5V signals to drive ignition modules, CDI units / coils 30 extra outputs for additional features. Can be adjusted to control virtually anything like fuel pumps, idle valves. GPO 1-8 (2A), GPO 9/10 (5A), GPO 11-14(2A), GPO 15-23 (12V sourcing, 4A), GPO 23-30 (1.5A) Dual E-Throttle support MaxxECU PRO technical CAN bus for expansion modules, OEM vehicle CAN, OBDII USB communication for tuning with MTune Bluetooth for connecting to mobile devices with MDash 8MB memory for internal logging, up to 1000Hz Supply voltage 8-22V ARM Cortex-M3 120MHz main processor. Three extra processors to handle the triggers, injectors and EGT Resolution on ignition: 0.1 degrees Resolution on injectors: 0.001 ms Updates the fuel and ignition calculations 2000 times per second The fastest PC communication on the market 50Hz sampling rate on all EGT inputs 1000Hz sampling rate on all analog inputs Weight: 1137g 252x180x40mm excluding protruding connectors Built-in accelerometer up to 8G Waterproofed aluminium case with shock absorbers MTune / MaxxECU Feature List
