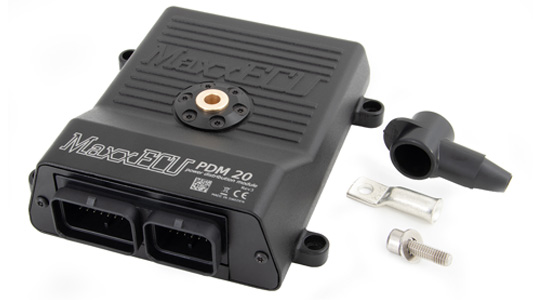

Description MaxxECU PDM20 general -40 to 125 deg C temperature range Reverse polarity protection 6-22V operating voltage 32-bit ARM Cortex-M3 CPU 132x140x42mm (excluding protruding connectors) 1x 34-pin and 1x 26-pin Superseal connectors M6 screw for battery connection PC communication over CAN-bus via any MaxxECU to MTune MaxxECU PDM20 inputs 7 digital / analog (0-24V) inputs Software selectable 12V pullup CAN keypad (4,6,8,12 keys) MaxxECU PDM20 outputs 230A maximum current throughput 20 outputs (8x25A 8x15A 4x8A) All outputs are PWM capable Current and voltage measuring 6 outputs with H-bridge drivers Overtemperature protection Output overcurrent protection via emulated fuse characteristics and hardware backup protection Monitored 5V sensor supply output Outputs can be paired to increase current capacity
