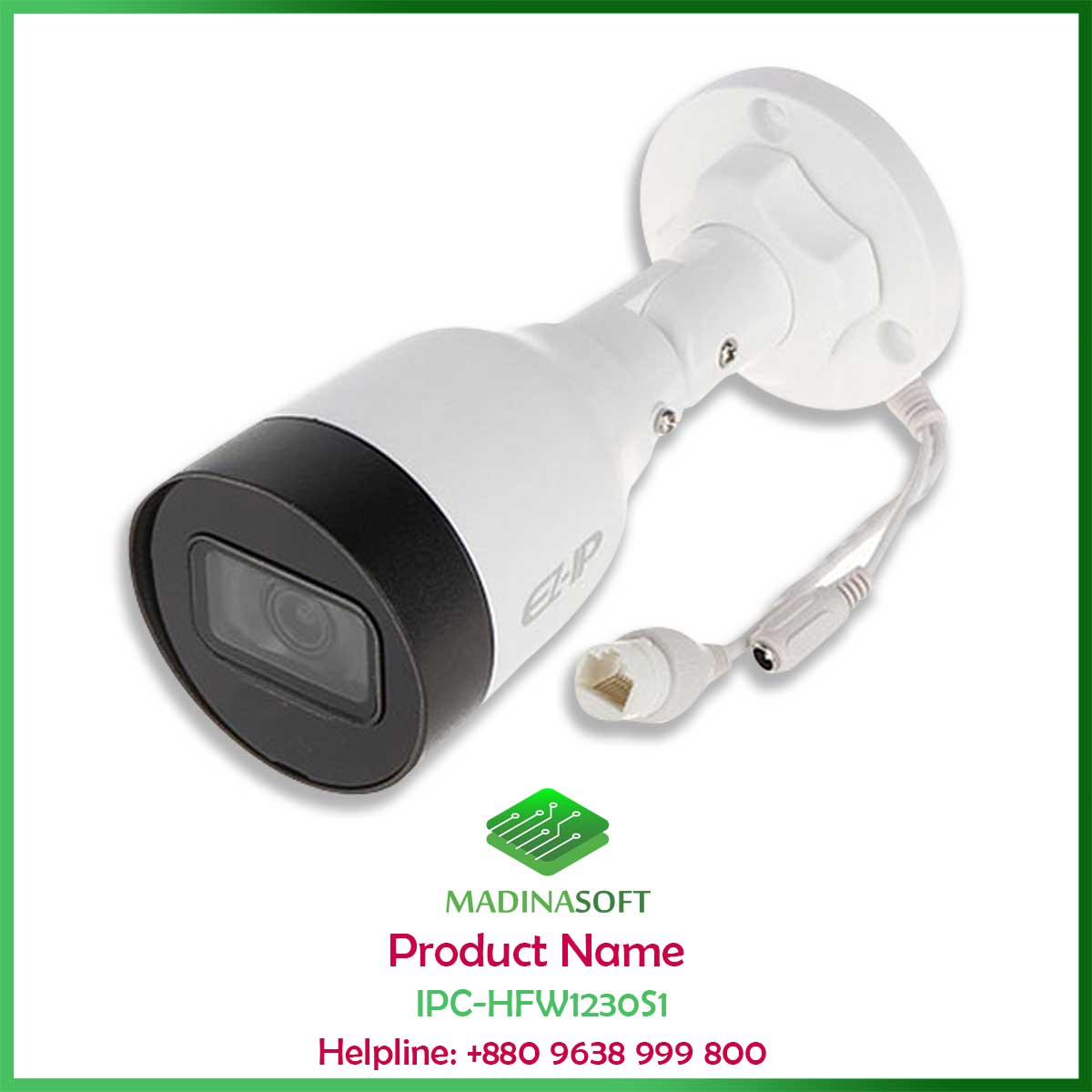

Specification Camera Feature Image Sensor 2MP, 1/2.7” CMOS image sensor Effective Pixels 1920 (H) × 1080 (V) IR Distance 30 m (98.4 ft) Others 2 Stream Capability Operating Conditions: -40°C to 60°C (-40°F to 140°F)/less than ≤ 95% Storage Temperature: -40°C to 60°C (-40°F to 140°F) Ingress Protection: IP67 Lens Type Fixed-focal Focal Length 2.8 mm 3.6 mm Aperture Max. Aperture: F2.0, F2.0 Angle of View 2.8 mm: Horizontal: 105° Vertical: 57° Diagonal: 125°3.6 mm: Horizontal: 87° Vertical: 47° Diagonal: 104 Physical Specification Power Power Supply: 12V DC/PoE (802.3af) Power Consumption: Description Dahua IPC-HFW1230S1P 2MP IR-30M Bullet Network Camera The Dahua IPC-HFW1230S1P IBullet Network Camera comes with 2MP, 1/2.7″ CMOS image sensor, low illuminance, high image definition, H.265 codec, high compression rate, ultra-low bit rate and Outputs max. 2MP (1920 × 1080) @25/30 fps. It is built-in IR LED that is capable to capture 30M distance area. This new Bullet camera featured with ROI, SMART H.264/H.265, flexible coding, applicable to various, bandwidth and storage environments and also has bandwidth and storage environments. This Bullet camera also has Rotation mode, DWDR, 3D DNR, HLC, BLC, digital watermarking and applicable to various monitoring scenes. The Motion detection, video tampering, network disconnection, IP conflict, illegal access features are also available here. It supports 12V DC/PoE power with IP67 protection. The camera is also passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. The Bullet camera also allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage. This new Bullet Network Camera has 01 year warranty.
