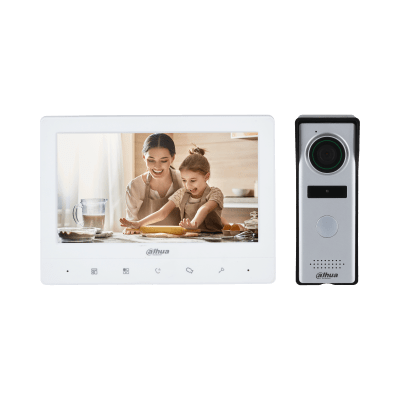

Dahua KTA03 Video Intercom KIT 7″ TFT screen Video intercom function: Unlock, voice call, video call, volume adjustment, doorway monitoring System Capacity：2 door stations 3 indoor monitors Multiple bell sounds Support digital wide dynamic range (DWDR) Take Snapshots Specifications System Button Type Touch keypad Basic Display 7.0″ TFT Resolution 1024 × 600 Indicator Light 1 indicator light; Green: Power on Function Communication Method Analog Performance Casing PC ABS General Color White Power Supply DC 12V/2A Power Adapter Included Installation Surface mount Certifications CE/FCC Accessory Bracket (included) Dimensions 133.90 mm × 182.70 mm × 17.70 mm (5.27″ × 7.19″ × 0.70″) Operating Temperature -10°C to 55°C ( 14°F to 131°F) Operating Humidity 10%RH–95%RH Power Consumption ≤ 2W (standby) ≤ 5W (working) Net Weight 0.25 kg (0.55 lb) Gross Weight 0.48 kg (1.05 lb) DHI-VTO1000J System Button Type Mechanical Basic Camera 1/4″ 1.3 MP CMOS Field of View Horizontal: 70° Vertical: 40° WDR DWDR Illuminator Type Auto IR Day/Night ICR auto switch Audio Input 1 channel to the microphone; pickup distance 0.5 m Audio Output 1 channel to the speaker Indicator Light 1 indicator light; Green: Power on Function Communication Method Analog Unlock Mode Remote unlock Performance Casing PC ABS Port Unlock Button 1 Door Status Detection 1 General Color Silver Power Supply Powered by indoor monitor Installation Surface mount Certifications CE/FCC DHI-VTO1000J Accessory Rain cover (included) Dimensions 131.45 mm × 46.00 mm × 33.80 mm (5.18″ × 1.81″ × 1.33″) Protection Grade IP66 (Apply silicon sealant to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.) Operating Temperature -30°C to 60°C (-22°F to 140°F) Operating Humidity 10%RH–95%RH Power Consumption ≤ 1W (standby) ≤ 3W (working) Net Weight 0.18 kg (0.40 lb) Gross Weight 0.38 kg (0.84 lb) You can visit www.dahuasecurity.pk By monitoring the activities of workers and visitors on your company’s premises, you and your employees may have complete peace of mind about.
